NB SMSF35GWUU 35mm Slide Bush Linear Motion Ball Bushing Bearing

NB SMSF35GWUU 35mm Slide Bush Linear Motion Ball Bushing Bearing

$556.41 USD
$618.99 USD $556.41 USD
Sale Sold out
Shipping calculated at checkout.

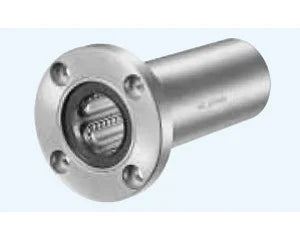

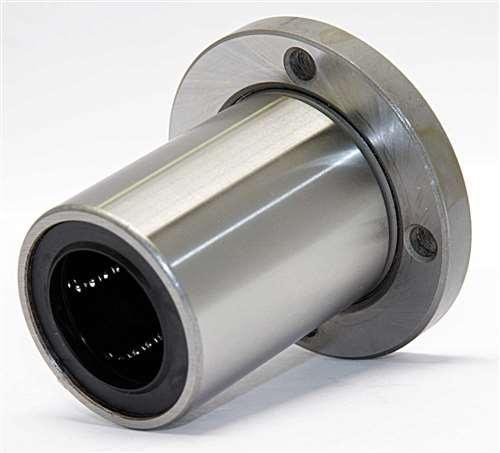

SMSF35GWUU Round Flange Double Wide Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SMSF35GWUU Round Flange Double Wide Anticorrosion Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • SMSF35GWUU Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Bearing Inner Diameter: 35mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1670 N
  • Static load rating Cor: 3140 N

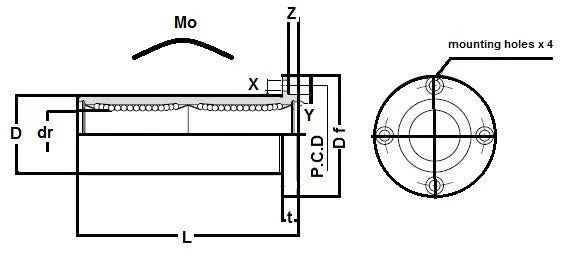

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
35 0-12 52 0-22 70 82 10 67 6.6 x 11 x 6.1
