NB SMSF40GW 40mm Slide Bush Linear Motion Ball Bushings Bearing

NB SMSF40GW 40mm Slide Bush Linear Motion Ball Bushings Bearing

$691.25 USD
$768.99 USD $691.25 USD
Sale Sold out
Shipping calculated at checkout.

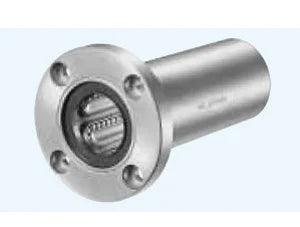

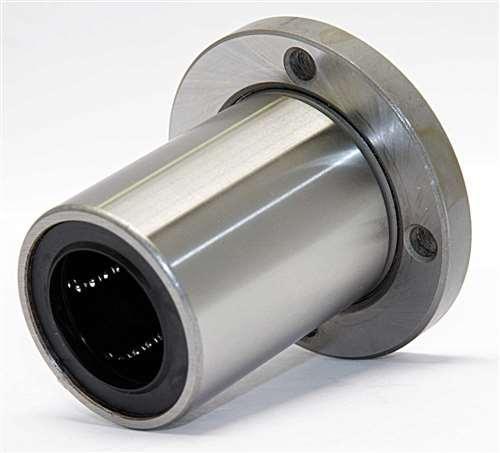

SMSF40GW Round Flange Double Wide Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SMSF40GW Round Flange Double Wide Anticorrosion Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • SMSF40GW Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 2160 N
  • Static load rating Cor: 4020 N

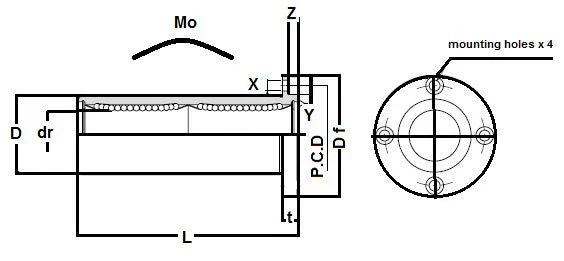

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
40 0-12 60 0-22 80 96 13 78 9 x 14 x 8.1
