NB SW16 1" Ball Bushings Linear Motion

NB SW16 1" Ball Bushings Linear Motion

$74.60 USD
$82.99 USD $74.60 USD
Sale Sold out
Shipping calculated at checkout.
SW16:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

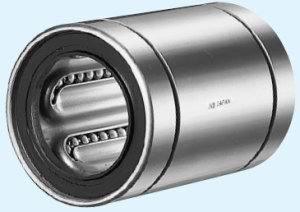

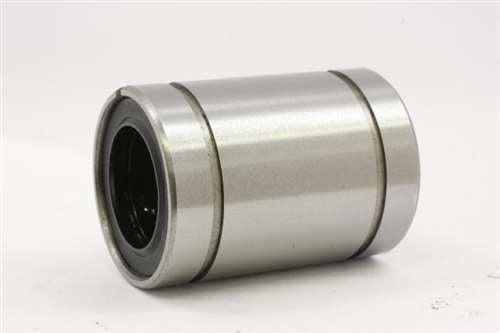

1" Bore linear motion ball bushings/bearings, inner diameter(bore)= 1" inch dimensions with steel retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SW16 Linear Motion Ball Bushings
  • NB Systems Ball Bushings Linear Motion
  • Number of ball circuits: 6
  • Size: 1" x 1 9/16" x 2 1/4" inch
  • Inner Diameter: 1" inch
  • Outer Diameter: 1 9/16" inch
  • Length: 2 1/4" inch
  • Quantity: 1 Bearing
  • Dynamic load rating: 980 N
  • Static load rating: 1,570 N

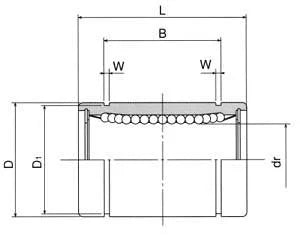

Major dimensions and tolerance (inch)
Eccentricity
Radial clearance
(inch)
dr D L B W D1 Precision
(inch)		 High
(inch)
inch tolerance inch tolerance inch tolerance inch tolerance
Precision High
1" 0-.0003 0-.0004 1-9/16" 0-.00065 2-1/4" 0-.012 1-3/4" 0-.012 0.068 1-15/32" .0004-10 .0006-15 .0002-6
