NB TW24 NB Self Aligning Ball Bushing 1-1/2" Linear Motion Bearing

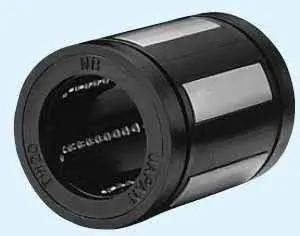

TW24 Self-Aligning Top Ball Linear Bushing - High Load
✨ 1 1/2" ID x 2 3/8" OD x 3" Length - Made in Japan by NB Linear Systems

The TW24 Top Ball bushing is a high-load linear motion bearing built for long life and smooth tracking. Manufactured in Japan by NB Systems, it features a 1 1/2" inch bore and supports up to 27x the travel life of standard bushings. With five internal ball circuits and self-aligning capability, it’s ideal for CNC machines, automated assemblies, and precision-guided motion systems.

🟢 Pack size: 1 bearing
🟢 Type: Self-aligning linear motion ball bushing
🟢 Series: Top Ball - High load standard type
🟢 Inner diameter (ID): 1 1/2" inch
🟢 Outer diameter (OD): 2 3/8" inch
🟢 Length: 3" inch
🟢 Ball circuits: 5
🟢 Dynamic load rating: 6584 N
🟢 Static load rating: 8230 N
🟢 Built-in seals for debris protection
🟢 Made in Japan by NB (Nippon Bearing)

Dimensions Table:
