VXB
POS5L Male Rod End 5mm Left Hand M5x0.8 Bearing Joint
POS5L Male Rod End 5mm Left Hand M5x0.8 Bearing Joint
Regular price
$6.90 USD
Regular price
$9.99 USD
Sale price
$6.90 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
POS5L Male Rod End Bearing - Left Hand Thread
✨ 5mm ID - M5x0.8 Thread - For Reverse-Turn Motion Control
The POS5L is a left-hand male rod end bearing built for compact linkages, mechanical arms, and steering systems that require reverse-thread articulation. With a 5mm bore and durable construction, it provides smooth pivoting for shafts and rods in tight, directional setups.
🟢 Type: Male rod end (Heim joint)
🟢 Thread Direction: Left-hand
🟢 Inner Diameter (Bore): 5mm
🟢 Thread Size: M5 x 0.8
🟢 Dynamic Load Rating: 3,300 N
🟢 Static Load Rating: 6,200 N
🟢 Pack Size: 1 bearing

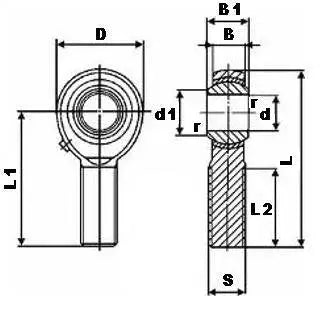

Dimensions Table (mm):
| Spec | Value |
|---|---|
| Bore (d) | 5mm |
| Thread | M5 x 0.8 (Left-Hand) |
| S (Wrench Flat) | 16mm |
| D (Head Diameter) | 6mm |
| B (Ball Width) | 8mm |
| B1 (Head Width) | 7.7mm |
| L (Overall Length) | 35mm |
| L1 (Thread Length) | 33mm |
| L2 (Shank Length) | 20mm |
