SB202 Ball Bearing Insert 15mm ID - 40mm OD - Set Screw Locking

SB202 Ball Bearing Insert
✨ 15mm ID - 40mm OD - Set Screw Locking

The SB202 is a ball bearing insert with a 15mm inner diameter and set screws for secure shaft mounting. Commonly used in mounted bearing units, it’s designed for smooth rotation and easy installation in agricultural, industrial, and mechanical equipment.

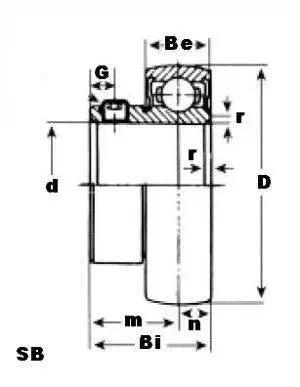

🟢 Type: Ball bearing insert (with set screws)
🟢 Inner diameter (d): 15mm
🟢 Outer diameter (D): 40mm
🟢 Inner ring width (Bi): 22mm
🟢 Outer ring width (Be): 12mm
🟢 Fillet radius (r): 1mm
🟢 Set screw spacing (n): 6mm
🟢 Set screw distance from center (m): 16mm
🟢 Set screw thread size (G): 4.5mm
🟢 Quantity: 1 bearing
🟢 Dynamic load rating (Cr): 2,750 lbs
🟢 Static load rating (Cor): 1,072 lbs
