SB203 Bearing 17mm Bore Insert Mounted Ball Bearing
SB203 Bearing 17mm Bore Insert Mounted Ball Bearing
Regular price
$21.59 USD
Regular price
$19.99 USD
Sale price
$21.59 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

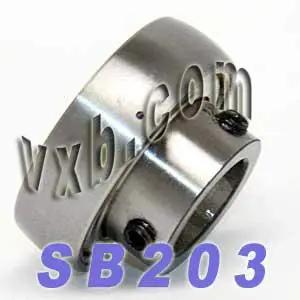

SB203 Ball Bearing Insert
✨ For 17mm Shaft with Set Screws
This SB203 insert bearing is designed to fit snugly in mounted housings, offering smooth rotation and dependable performance for industrial machinery and agricultural equipment. With a 17mm inner diameter and two set screws, it's easy to secure in place and ready to handle radial and axial loads.
🟢 Inner Diameter: 17mm (with set screws)
🟢 Outer Diameter: 40mm
🟢 Overall Width: 22mm
🟢 Insert Style: Cylindrical bore with set screws
🟢 Load Rating Cr (Dynamic): 9.55 kN
🟢 Load Rating Cor (Static): 4.80 kN
🟢 Pack Size: 1 bearing
Dimensions Table:
| Spec | Value |
|---|---|
| d (Bore) | 17mm |
| D (OD) | 40mm |
| Bi (Total Width) | 22mm |
| Be (Outer Ring Width) | 12mm |
| r (Fillet Radius) | 1mm |
| n (Distance to Set Screw) | 6mm |
| m (Inner Ring Width) | 16mm |
| G (Set Screw Size) | 4.5mm |
