SC30UU 30mm Slide Unit Ball Bushing Block Linear Motion
SC30UU 30mm Slide Unit Ball Bushing Block Linear Motion
Regular price
$32.39 USD
Regular price
$29.99 USD
Sale price
$32.39 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

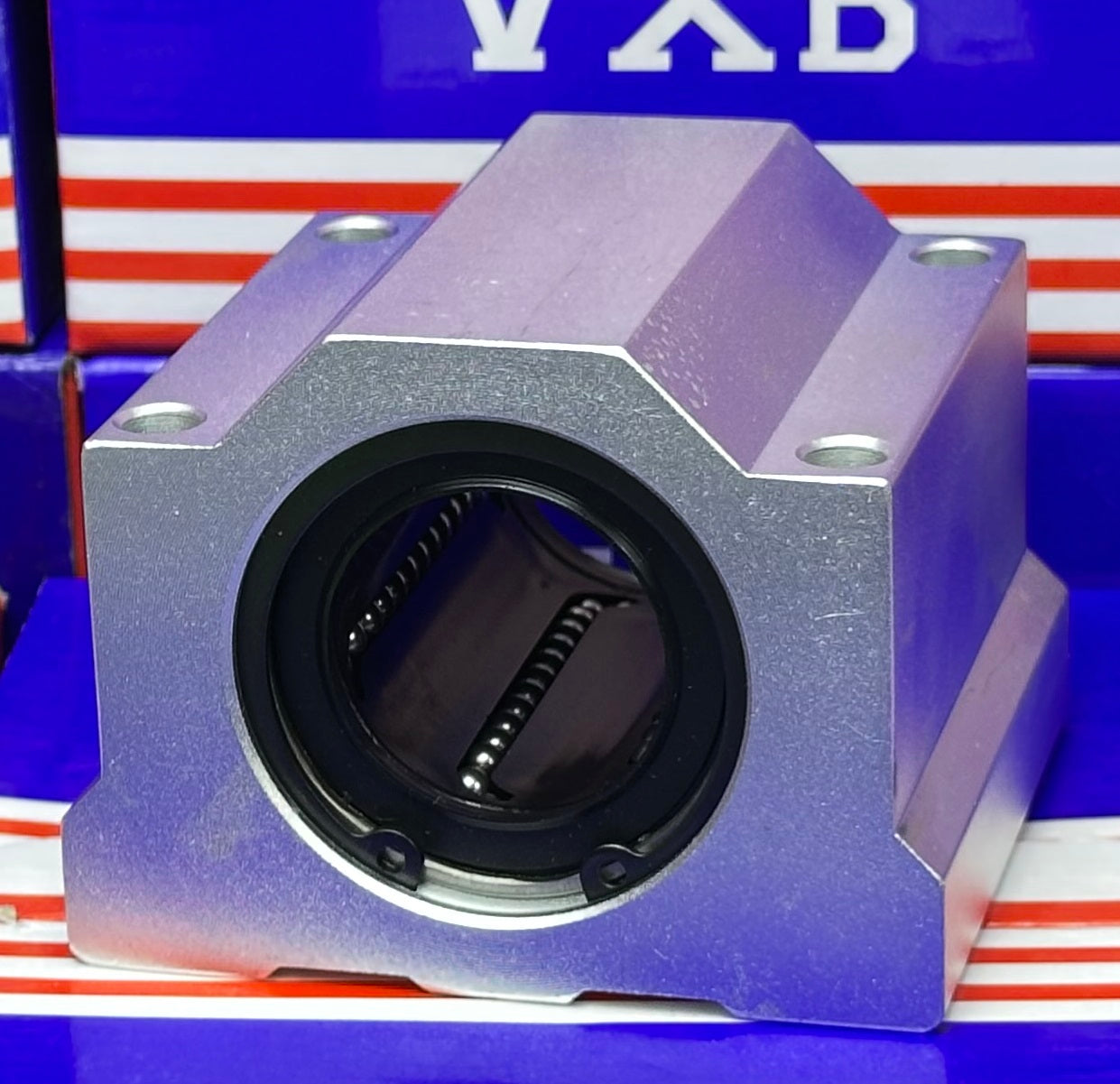

SC30UU Aluminum Pillow Block
✨ Slide Unit with Preinstalled 30mm Bearing for Linear Shafts
The SC30UU is an aluminum pillow block slide unit designed to guide 30mm linear shafts. It comes with a pre-installed LM30UU bearing, making it a handy choice for CNC routers, automation setups, and other linear motion systems.
🟢 Fits 30mm diameter shafts
🟢 Includes LM30UU linear bearing
🟢 Housing material: lightweight aluminum
🟢 Mounting holes pre-threaded for easy install
🟢 Pack size: 1 unit

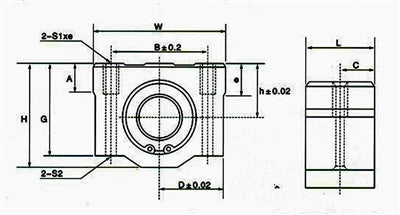

Dimensions (in mm)
| Model No | M | W | L | B | B1 | C | S × L | S2 | J | W1 | K | W2 | T | R | Bore | Bushing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC30UU | 59.5 | 78 | 72 | 58 | 10 | 58 | M8×18 | M6 | 30 | 39 | 49 | 72 | 15 | 29.5 | 30 | LM30UU |
