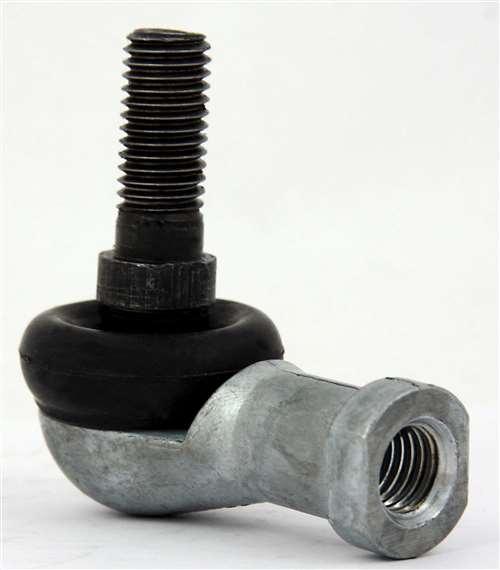

L-Ball Rod Ends SQL10RS-1, inner diameter is 10mm, the internal thread size is M10x1.5, Cross-reference part numbers:
- SQL10RS-1 Bearing
- L-Ball Rod Ends
- Quantity: One L-Shape Rod end
- Static load Capacity: 8.4 KN

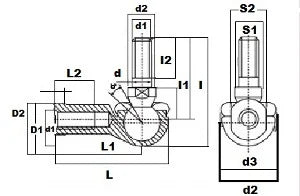

| Dimensions (mm) |
|---|
| d |
d1 |
d2 |
d3 |
I |
I2 |
I3 |
S1 |
L |
L1 |
L2 |
D1 |
D2 |
D3 |
S2 |
| 10 |
M10x1.5 |
14 |
30 |
15 |
19.5 |
11 |
80.5 |
35 |
6.5 |
18 |
15 |
19 |
28 |
17 |
|
