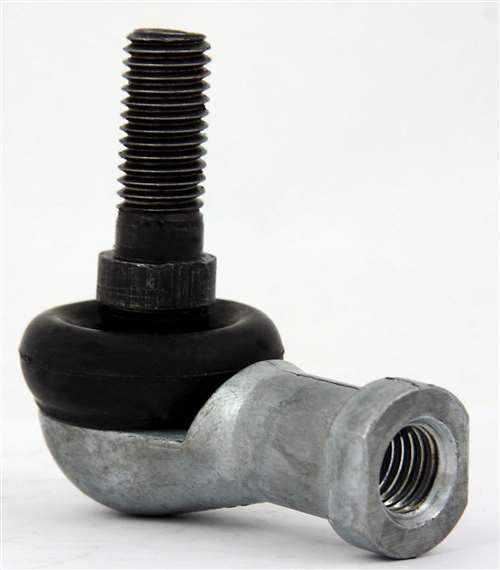

L-Ball Rod Ends SQL12RS-1, inner diameter is 12mm, the internal thread size is M12x1.75, Cross-reference part numbers:
- SQL12RS-1 Bearing
- L-Ball Rod Ends
- Quantity: 1 Bearing
- Static load Capacity: 11 KN

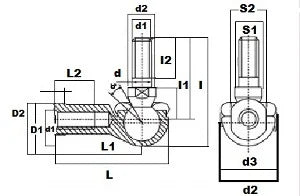

| Dimensions (mm) |
|---|
| d |
d1 |
d2 |
d3 |
I |
I2 |
I3 |
S1 |
L |
L1 |
L2 |
D1 |
D2 |
D3 |
S2 |
| 12 |
M12x1.25 |
17 |
32 |
17 |
21 |
15 |
91 |
40 |
6.5 |
20 |
17.5 |
22 |
32 |
19 |
|
