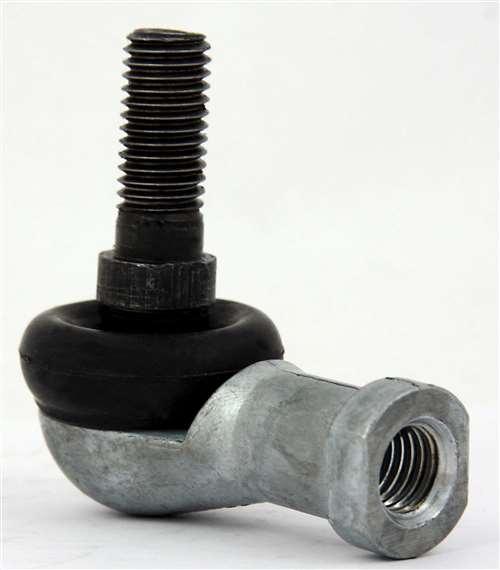

L-Ball Rod Ends SQL16RS-1, inner diameter is 16mm, the internal thread size is M16x2, Cross-reference part numbers:
- SQL16RS-1 Bearing
- L-Ball Rod Ends
- Quantity: One L-Shape Rod end
- Static load Capacity: 15 KN

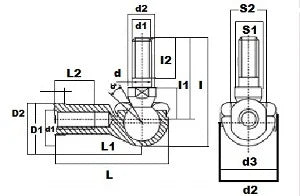

| Dimensions (mm) |
|---|
| d |
d1 |
d2 |
d3 |
I |
I2 |
I3 |
S1 |
L |
L1 |
L2 |
D1 |
D2 |
D3 |
S2 |
| 16 |
M16x2 |
22 |
44 |
23 |
25.5 |
19 |
118 |
50 |
8 |
27 |
22 |
27 |
40 |
22 |
|
