SQL18RS L-Ball Rod Ends 18mm Bore

SQL18RS L-Ball Rod Ends 18mm Bore

$137.15 USD
$126.99 USD $137.15 USD
Sale Sold out
Shipping calculated at checkout.

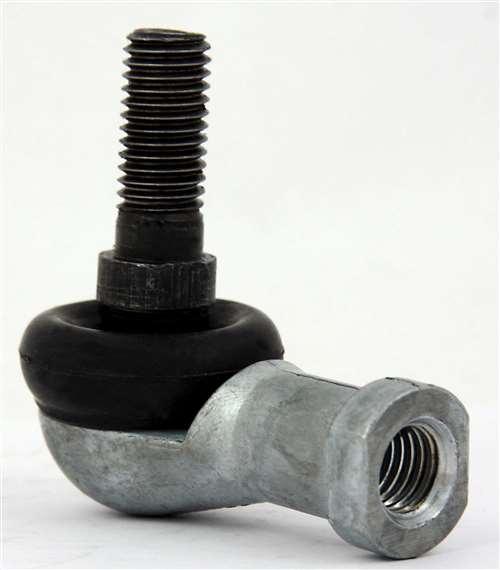

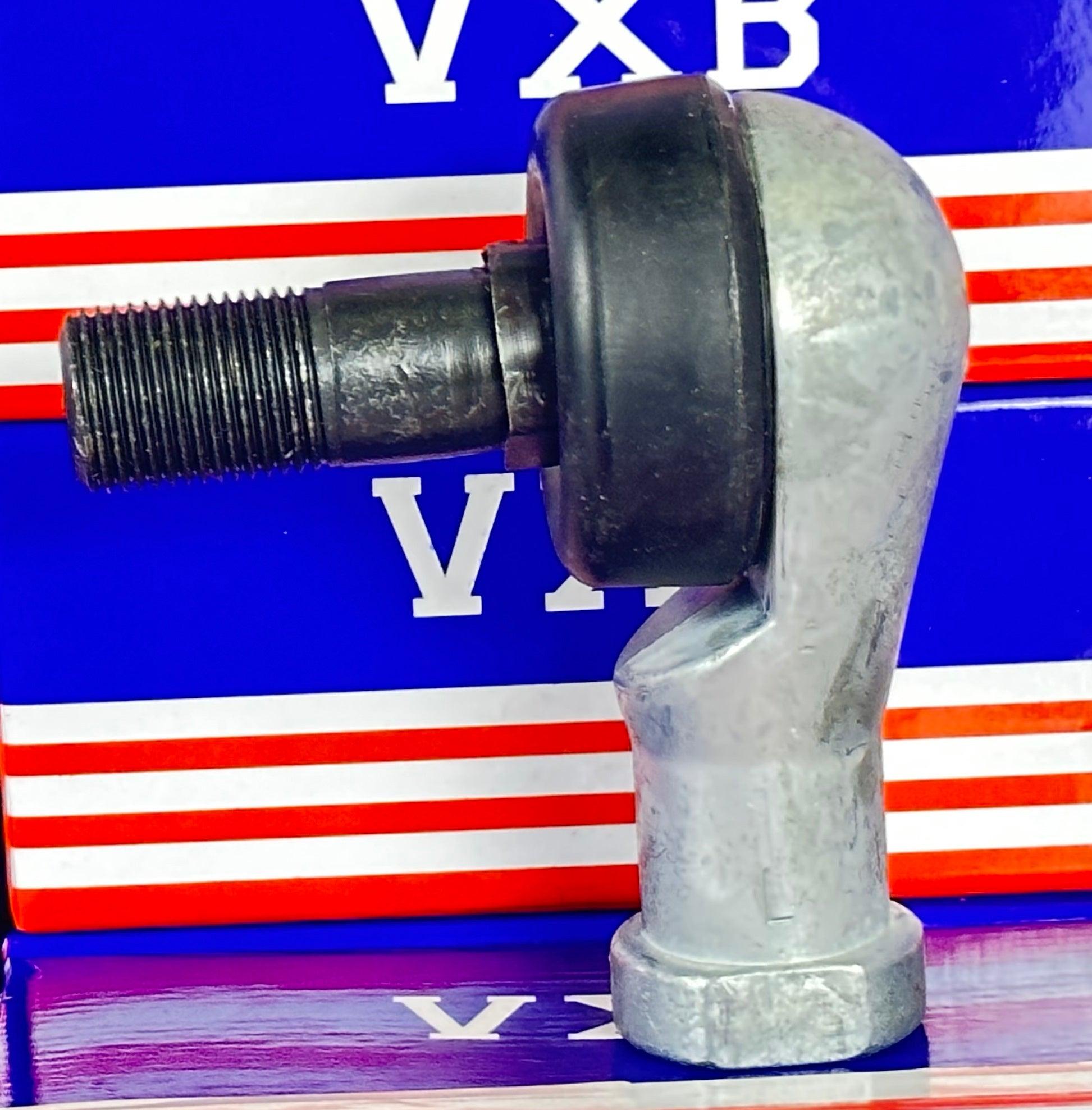

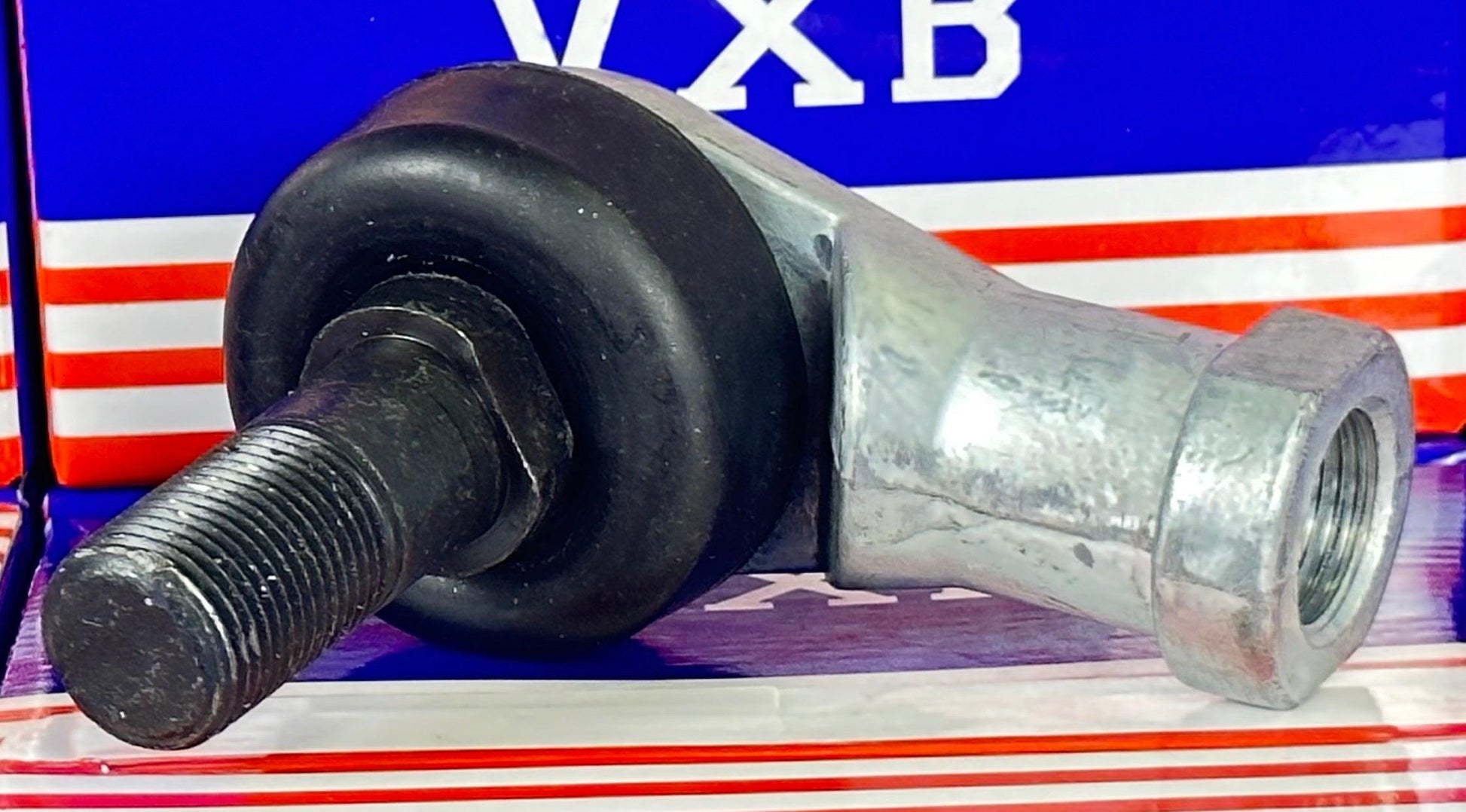

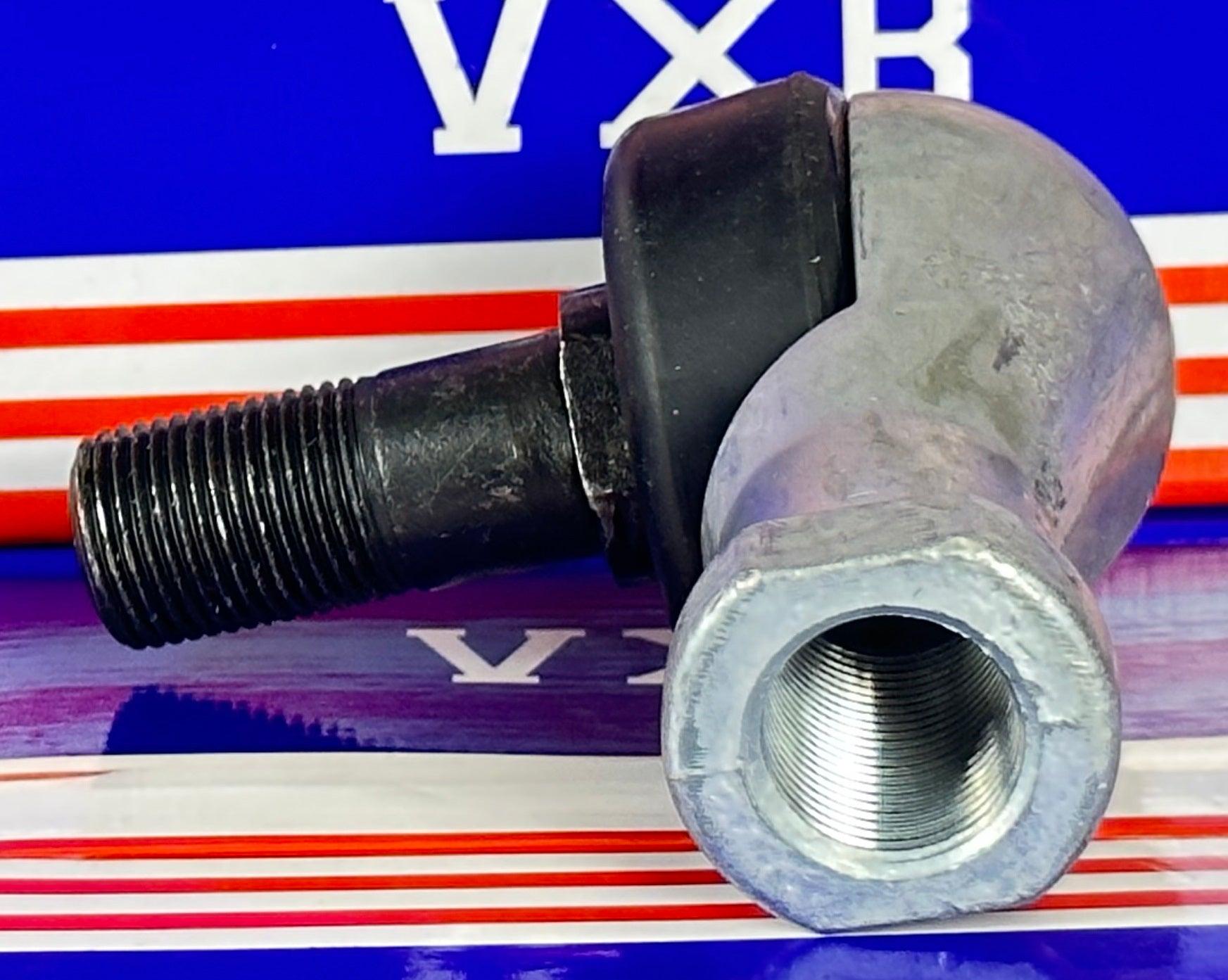

L-Ball Rod Ends SQL18RS
18mm Inner Diameter

L-Ball Rod Ends SQL18RS, inner diameter is 6mm, the internal thread size is M18x1.5, Cross-reference part numbers:

  • SQL18RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 19 KN

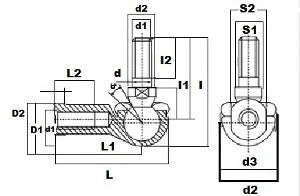

Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
18 M18x1.5 23 45 25 31 20 130.5 58 10 32 25 31 45 27
