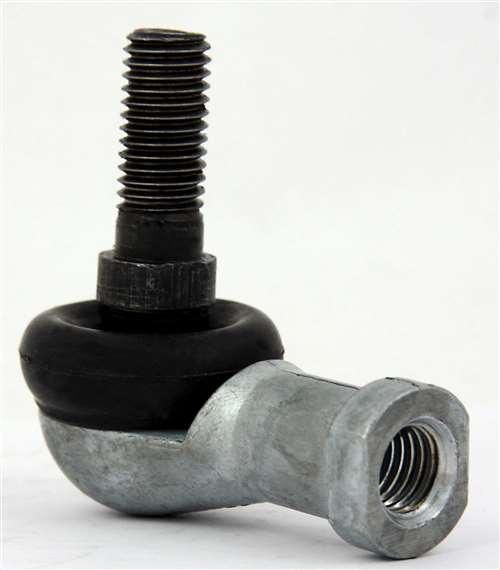

L-Ball Rod Ends SQL8RS, inner diameter is 8mm, the internal thread size is M8x1.25, Cross-reference part numbers:
- SQL8RS Bearing
- L-Ball Rod Ends
- Quantity: One L-Shape Rod end
- Static load Capacity: 5.8 KN

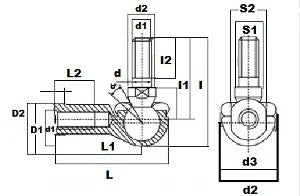

| Dimensions (mm) |
|---|
| d |
d1 |
d2 |
d3 |
I |
I2 |
I3 |
S1 |
L |
L1 |
L2 |
D1 |
D2 |
D3 |
S2 |
| 8 |
M8x1.25 |
12 |
24 |
12 |
16 |
10 |
65 |
45 |
32 |
16 |
12.5 |
16 |
24 |
14 |
|
