SW10GUU NB 5/8" Seals Ball Bushings Linear Motion
SW10GUU NB 5/8" Seals Ball Bushings Linear Motion
Regular price
$43.19 USD
Regular price
$39.99 USD
Sale price
$43.19 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SW10GUU Seals on both sides NB Nippon Bearing Linear Systems Made in Japan |
SW10GUU 5/8" Bore linear motion ball bushings/bearings, SW10GUU is Seals on both sides, inner diameter(bore) is 5/8" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

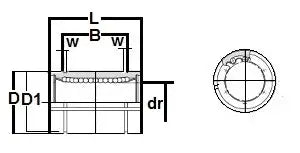

| Major dimensions and tolerance (inches) | Eccentricity (inch) |
Radial clearance (inch) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||
| 5/8" | 0-0.0004 | 1-1/8" | 0-0.0005 | 1-1/2" | 0-0.2 | 1-7/64" | 0-0.2 | 1/16" | 1-1/16" | 0.0003 | 0.0005 |
