UCFA205-16 1" Black Oxide Plated Insert Bearing Flange Cartridge Bearing Unit Mounted Bearing
UCFA205-16 1" Black Oxide Plated Insert Bearing Flange Cartridge Bearing Unit Mounted Bearing
Couldn't load pickup availability
UCFA205-16 Black Oxide Flange Cartridge Bearing
✨ 1" Inner Diameter - Adjustable Flange Unit - Corrosion Resistant
The UCFA205-16 is a black oxide plated flange cartridge bearing unit with a 1" inner diameter. Designed for added corrosion resistance and industrial appeal, this unit features a UC205-16 insert and FA205 adjustable flange housing, offering strong performance in machinery, conveyors, and mechanical frames.
🟢 Pack size: 1 bearing unit
🟢 Inner diameter: 1"
🟢 Insert: UC205-16 (black oxide plated)
🟢 Housing: FA205 flange cartridge style
🟢 Finish: Black oxide coating for corrosion resistance
🟢 Basic dynamic load rating (Cr): 14 kN
🟢 Basic static load rating (Cor): 7.85 kN
🟢 Bolt size: 3/8"

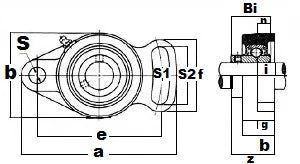

Dimensions (Inches)
| Feature | Size |
|---|---|
| a | 4-59/64" |
| e | 3-55/64" |
| i | 5/8" |
| g | 35/64" |
| S | 15/32" |
| S1 | 33/64" |
| S2 | 2" |
| b | 2-11/16" |
| f | 2-9/16" |
| z | 1-13/32" |
| Bi | 1.34" |
| n | 9/16" |
