500mm 行程数控线性平台运动执行器，双光轴 XYZ 轴线性滑轨铝合金十字滑台 SBR16 线性导轨 SFU1605 滚珠丝杆用于数控机床

500mm 行程数控线性平台运动执行器，双光轴 XYZ 轴线性滑轨铝合金十字滑台 SBR16 线性导轨 SFU1605 滚珠丝杆用于数控机床

$959.04 USD
$888.00 USD $959.04 USD
促销 售罄
结账时计算的运费。

  • 包装包含：1× 500mm行程X/Y/Z轴1605双光轴线性导轨手动滑块，配Nema23步进电机及支架。

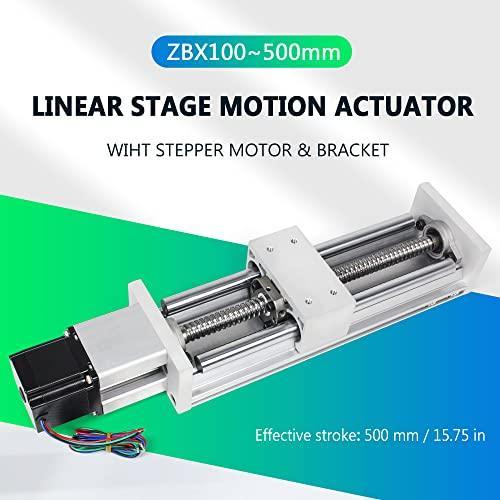

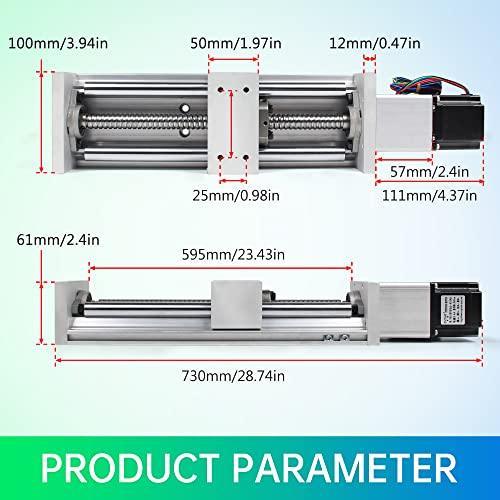

  • 有效行程：500mm；水平承载：120kg；垂直承载：30kg；宽度：100mm。

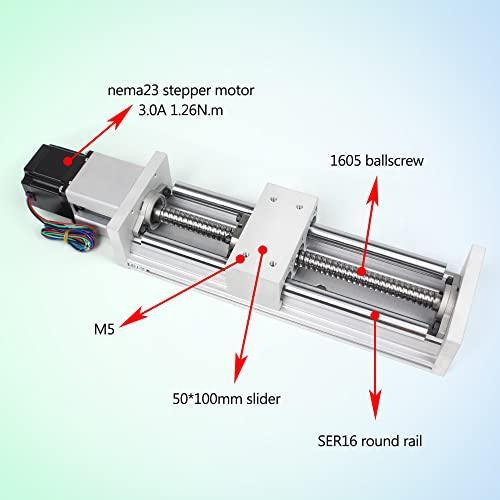

  • 螺杆：SFU 1605滚珠丝杆，直径16mm，精度高达0.03mm；导轨：带座SBR导轨，16mm耐热设计。
  • 采用优质铝合金材料，美观、防锈、耐磨且耐用。
  • 侧面和底部均配备M5可移动螺母，安装方便灵活。
